Description
Description:
Feature:
The piezoelectric working way ensures that the machine always work on a steady power, high efficiency and generates little heat.
Digitally controlled, automatic frequency tracking ensures that the machine always work on the best frequency and more steadily.
The scaling tip is made of high strength alloy material. The atomized spraying design forms the cavitations, and in conditions of water it will form oxygenated water to release the new eco-pure oxygen, which can efficiently inhibit periodontal anaerobic bacteria against periodontal diseases.
Ergonomic design of handpiece makes it easy for long time use.
Cable of the handpiece is made of silica gel tube, soft and durable.
Axis of the handpiece is made of high-quality titanium alloy, strong and durable.
Detachable handpiece, could be autoclaved at 135°C and 0.22MPa
Specification:
Adapter input |
~24V 50Hz +- 1Hz |
Main unit input |
≤40VA |
Main unit fuse |
1.6A/250V |
Output power |
3W~20W |
Primary tip vibration excursion |
≤100μm |
Tip vibration frequency |
28kHz +- 3kHz |
Half-excursion force |
<2N |
Water pressure |
0.01MPa~0.5MPa(0.1bar~5bar) |
Operating mode |
Continuous operation |
Energized from an external electrical power source |
Class II |
Degree of protection against electric shock |
BF |
Degree of protection against harmful ingress of water |
Ordinary equipment(IPXO) |
Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen nitrous oxide |
Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen nitrous oxide |

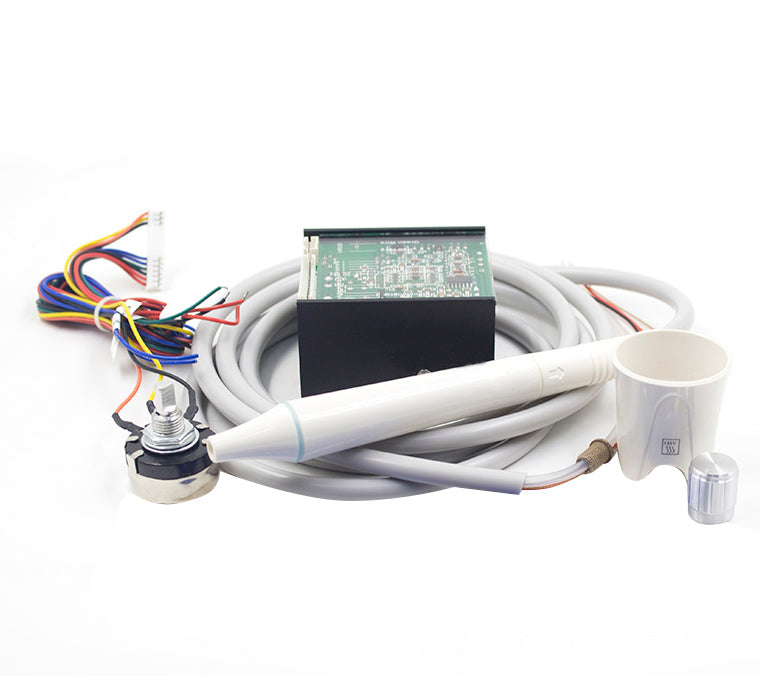

Include:
1x Main unit
4x "O"Circle
1x Potentiometer knob
6x Scaling tips
1x Handpiece
1x Torque wrench
1x Cable
1x Wire and potentiometer
